Polystyrene (PS) Injection Moulding: The Versatile Amorphous Workhorse
1. Introduction: The Clarity and Versatility Leader
Polystyrene (PS) stands as one of the most versatile and widely used thermoplastics in the world, with global production exceeding 15 million tons annually. First commercialized in the 1930s, this amorphous polymer has become synonymous with clarity, rigidity, and cost-effectiveness across countless applications. While often associated with disposable products, PS injection moulding encompasses a sophisticated range of materials and processes that deliver precision parts for demanding applications from medical devices to electronics.
This comprehensive guide explores the complete spectrum of polystyrene injection moulding, from general-purpose crystal grades to high-impact modified versions. We will examine how this seemingly simple material, through precise processing control, produces everything from delicate laboratory ware to durable appliance components, and why it remains a manufacturing staple in an increasingly complex materials landscape.
2. Material Science: Understanding Polystyrene Variants
Chemical Structure and Classification:
Polystyrene is an aromatic polymer synthesized from styrene monomer, characterized by a benzene ring attached to every other carbon atom in the chain. This structure determines its key characteristics:
Primary PS Types:
| Type | Full Name | Key Characteristics | Applications |
|---|---|---|---|
| GPPS | General Purpose PS | Crystal clarity (90%+ transmission), rigidity, brittle | Packaging, displays, laboratory ware |
| HIPS | High Impact PS | Rubber-modified (5-15% polybutadiene), opaque, tough | Appliances, electronics, toys |
| EPS | Expandable PS | Pre-expanded beads with pentane blowing agent | Insulation, packaging, disposable containers |
| SPS | Syndiotactic PS | Stereoregular structure, crystalline, high heat resistance | Specialty engineering applications |
Material Properties Overview:
| Property | GPPS | HIPS |
|---|---|---|
| Density (g/cm³) | 1.04-1.06 | 1.03-1.06 |
| Tensile Strength (MPa) | 45-60 | 20-40 |
| Elongation at Break (%) | 1-3 | 20-60 |
| Notched Izod Impact (J/m) | 15-25 | 80-200 |
| HDT @ 1.82 MPa (°C) | 85-95 | 75-90 |
| Refractive Index | 1.59 | 1.59 |
| Melt Flow Rate (g/10min) | 5-25 | 5-30 |
Specialty Grades:
Medical Grade: USP Class VI compliant, gamma sterilizable
Food Contact: FDA compliant for food packaging
Flame Retardant: UL94 V-0, V-1, V-2 ratings
UV Stabilized: For outdoor applications with limited lifespan
Antistatic: For electronics packaging
3. Material Preparation and Handling
Drying Requirements:
Unlike many engineering plastics, polystyrene has minimal moisture absorption characteristics:
Moisture Absorption: 0.1-0.3% at equilibrium (significantly lower than PA or PC)
Drying Recommendation: Generally not required for most applications
Special Cases: Drying at 70-80°C for 2 hours if material has been exposed to high humidity
Consequences of Moisture: Minor surface defects (splay) in severe cases only
Material Storage and Handling:
Storage Conditions: Cool, dry environment away from direct sunlight
Shelf Life: Indefinite if properly stored
Regrind Usage: Up to 30% regrind typically acceptable
Contamination Prevention: Keep separate from other materials, especially PVC
Colorant Integration:
Excellent pigment acceptance and dispersion
Masterbatch or pre-colored compounds available
For critical colors: Pre-compounding recommended for consistency
Transparent tints: Special attention to dispersion for optical clarity
Regrind Management:
Thermal Stability: PS has good thermal stability but degrades above 300°C
Property Retention: Good mechanical property retention with proper processing
Color Consistency: Monitor for yellowing with multiple regrind cycles
Blending: Homogeneous mixing with virgin material essential
4. Injection Moulding Machine Configuration
Standard Machine Requirements:
Polystyrene processes well on standard injection moulding equipment with minimal special requirements:
Screw Design:
Type: General purpose screw adequate
L/D Ratio: 20:1 standard
Compression Ratio: 2.0:1 to 2.5:1
Check Valve: Standard sliding ring type
Screw Tip: Standard design sufficient
Barrel and Nozzle:
Barrel Capacity: Shot size 20-80% of machine capacity optimal
Temperature Zones: Standard 3-zone configuration adequate
Nozzle Type: Open nozzle standard
Temperature Control: ±5°C accuracy acceptable for most applications
Clamping System:
Tonnage Requirements: 2-4 tons per square inch of projected area
Platen Size: Standard sizes adequate
Ejection System: Standard ejection sufficient
Special Considerations for HIPS:
Slightly Higher Pressure: May require 10-20% higher pressure than GPPS
Temperature Sensitivity: More sensitive to overheating than GPPS
Melt Homogeneity: Good mixing important for rubber dispersion
5. Processing Parameters and Optimization
Temperature Settings:
| Parameter | GPPS | HIPS | Special Considerations |
|---|---|---|---|
| Rear Zone | 180-200°C | 170-190°C | Gradual heating for HIPS |
| Middle Zone | 200-220°C | 190-210°C | Avoid overheating |
| Front Zone | 210-230°C | 200-220°C | Final melt homogenization |
| Nozzle | 210-230°C | 200-220°C | Match to front zone |
| Melt Temperature | 200-240°C | 190-230°C | Lower for HIPS |
| Mould Temperature | 20-60°C | 20-50°C | Lower for faster cycles |
Injection Phase Parameters:
Injection Speed:
GPPS: Fast to very fast (excellent flow characteristics)
HIPS: Moderate to fast (prevents excessive shear heating)
Injection Pressure: 600-1200 bar (lower than engineering plastics)
Switchover: 95-98% cavity fill by volume
Holding/Packing Phase:
Pressure: 30-50% of injection pressure
Time: Short (2-8 seconds typically)
Function: Minimize sink marks in thick sections
Cooling and Cycle Time:
Cooling Time: Short (10-30 seconds for most parts)
Ejection Temperature: 60-80°C
Total Cycle Time: Typically 20-60 seconds
Fast Cycling: PS excels in high-speed moulding applications
Special Processing Notes:
Thermal Degradation: Begins around 300°C – avoid prolonged exposure
Shear Sensitivity: HIPS more sensitive to shear degradation
Venting: Important despite low moisture (trapped air issues)
6. Tooling Design for Polystyrene Moulding
Mould Material Selection:
Production Moulds: Standard tool steels (P20, NAK80)
Prototype Moulds: Aluminum or soft steels acceptable
Surface Hardness: Standard hardness adequate (28-32 HRC minimum)
Corrosion Resistance: Standard protection adequate
Runner System Design:
Cold Runners: Full round, trapezoidal, or half-round acceptable
Size: 4-8mm diameter typical
Hot Runners: Less common but used for high-volume production
Gate Types:
Edge Gates: Most common
Fan Gates: For wide, thin parts
Pin Gates: For automatic degating
Submarine Gates: For cosmetic parts
Cooling System Design:
Standard Cooling: Adequate for most applications
Channel Size: 8-10mm diameter typical
Layout: Straightforward designs usually sufficient
Temperature Control: Less critical than for crystalline materials
Venting Requirements:
Vent Depth: 0.025-0.040mm
Vent Width: 6-12mm
Location: End of fill areas
Importance: Prevent burning and short shots
Ejection System:
Standard Ejectors: Adequate for most applications
Ease of Ejection: PS generally ejects easily
Surface Marks: Minimize for cosmetic parts
7. Part Design Guidelines for Polystyrene
Wall Thickness Principles:
General Range: 1.0-3.0mm
Optimal Thickness: 1.5-2.0mm
Uniformity: Important but less critical than for crystalline materials
Minimum Thickness: 0.5mm achievable with optimized processing
Thick Sections: Avoid when possible; core out if necessary
Rib and Boss Design:
Rib Thickness: 50-60% of adjacent wall
Rib Height: Maximum 3 times wall thickness
Boss Design: Standard designs adequate
Draft Angles: 1-2° per side minimum
Corner Design:
Internal Radii: Minimum 0.5 times wall thickness
External Radii: Internal radius plus wall thickness
Benefits: Improves flow and reduces stress concentration
Draft Angles:
Standard Parts: 0.5-1° per side minimum
Textured Surfaces: Add 1° per 0.025mm texture depth
Deep Draw Parts: Additional draft may be needed
Living Hinge Design (HIPS specific):
Thickness: 0.25-0.50mm
Width: 1.0-2.0mm
Orientation: Perpendicular to flow direction
Applications: Disposable containers with integrated lids
8. Amorphous Structure Advantages and Considerations
Understanding Amorphous Behavior:
Polystyrene’s amorphous structure provides distinct processing advantages:
Shrinkage Characteristics:
Uniform Shrinkage: Typically 0.4-0.7% (much lower than crystalline materials)
Isotropic Behavior: Similar shrinkage in all directions
Predictability: More consistent dimensional control
Reduced Warpage: Minimal differential shrinkage issues
Cooling Behavior:
No Crystallization: Simplifies cooling requirements
Faster Cycles: Can eject at higher temperatures
Reduced Residual Stress: Lower molded-in stress levels
Transparency Retention: No crystalline structures to scatter light
Processing Advantages:
Wider Processing Window: More forgiving than crystalline materials
Lower Energy Requirements: Lower processing temperatures
Faster Cycle Times: Quicker solidification
Simplified Tooling: Less concern about crystalline shrinkage
Design Implications:
Tighter Tolerances: Possible due to predictable shrinkage
Thinner Walls: Feasible due to good flow characteristics
Complex Geometries: Easier to mold without warpage concerns
Optical Applications: Excellent clarity without special processing
9. Specialized Applications and Processing Techniques
Medical and Laboratory Applications:
Sterilization Compatibility: Gamma radiation and ethylene oxide
Clarity Requirements: Crystal clarity for visibility
Chemical Resistance: Adequate for many laboratory chemicals
Regulatory Compliance: USP Class VI, FDA approvals
Packaging Applications:
High-Speed Moulding: Cycle times under 10 seconds achievable
Thin-Wall Design: Wall thickness down to 0.3mm possible
Decoration Options: Hot stamping, printing, labelling
Closure Systems: Snap-fits, living hinges, tamper evidence
Electronics and Consumer Goods:
Static Control: Antistatic grades available
Aesthetic Requirements: High gloss surfaces
Structural Requirements: HIPS for impact resistance
Regulatory Compliance: Flame retardant grades for electronics
Special Processing Techniques:
Co-injection Moulding:
Multi-layer structures for barrier properties
Regrind core with virgin skin layer
In-Mould Labelling:
Paper or plastic labels applied during moulding
High-volume packaging applications
Multi-Material Moulding:
PS with softer materials for grips
Two-shot for cosmetic effects
10. Troubleshooting Common PS Defects
| Defect | Root Causes | Corrective Actions |
|---|---|---|
| Splay/Silver Streaks | Moisture (rare), overheating, contamination | Verify material dryness, reduce temperatures, clean equipment |
| Brittleness | Overheating, excessive regrind, degradation | Lower melt temperature, reduce regrind %, check material freshness |
| Sink Marks | Insufficient packing, thick sections, high melt temp | Increase holding pressure/time, redesign thick areas, lower melt temp |
| Weld Lines | Multiple flow fronts, low melt temp, slow injection | Increase temperature 10-20°C, increase injection speed, relocate gates |
| Jetting | Gate too small, injection too fast, cold mould | Enlarge gate, reduce injection speed, increase mould temperature |
| Discoloration | Overheating, contaminated material, excessive regrind | Lower temperatures, clean equipment, reduce regrind percentage |
| Flash | Excessive pressure, worn tooling, insufficient clamp | Reduce pressure, repair tool, increase clamp force |
| Poor Clarity | Contamination, incorrect processing, moisture | Clean material handling, optimize temperatures, ensure proper drying |
Material-Specific Issues:
Thermal Degradation: Yellowing and property loss above 280°C
Shear Sensitivity: HIPS particularly sensitive to high shear rates
Environmental Stress Cracking: Susceptible to certain chemicals and stresses
Preventive Measures:
Temperature Control: Stay within recommended ranges
Material Handling: Prevent contamination
Regular Maintenance: Clean equipment and check for wear
Process Monitoring: Consistent parameters for quality
11. Secondary Operations and Finishing
Machining and Cutting:
Good Machinability: Can be sawed, drilled, turned
Tools: Sharp tools with positive rake angles
Cooling: Not usually required but helpful
Finishing: Sanding and polishing possible
Joining and Assembly Methods:
Mechanical Fastening:
Self-Tapping Screws: Work well with proper boss design
Inserts: Ultrasonic or heat-staked
Snap-fits: Excellent for assembly (HIPS particularly good)
Press-fits: Possible with careful design
Bonding and Welding:
Solvent Bonding:
Solvents: MEK, toluene, dichloromethane
Process: Capillary action or immersion
Strength: Very strong joints possible
Ultrasonic Welding:
Energy directors recommended
Fast and clean process
Adhesive Bonding:
Cyanoacrylates, epoxies, or UV-cure adhesives
Surface preparation may be needed
Decoration and Finishing:
Painting: Good adhesion with proper surface treatment
Printing: Screen printing, pad printing, or digital printing
Hot Stamping: Foil stamping for metallic effects
Vacuum Metallization: For reflective surfaces
Texture Application: During moulding or post-processing
Assembly Considerations:
Design for Assembly: Incorporate alignment features
Automation Compatibility: PS parts often designed for automated assembly
Quality Control: Visual inspection common for cosmetic parts
12. Quality Control and Testing
Process Control Parameters:
Key Variables: Melt temperature, injection speed, holding pressure
Consistency Checks: Part weight, dimensions, appearance
Statistical Process Control: Important for high-volume production
Documentation: Critical for medical and food contact applications
Material Testing:
Physical Properties:
Melt Flow Rate (ASTM D1238)
Density (ASTM D792)
Mechanical Properties:
Tensile (ASTM D638)
Impact (ASTM D256)
Flexural (ASTM D790)
Thermal Properties:
Vicat Softening Point (ASTM D1525)
HDT (ASTM D648)
Optical Properties:
Haze and transmission (ASTM D1003)
Refractive index
Regulatory Testing:
FDA food contact compliance
USP Class VI for medical applications
UL ratings for electrical applications
Part Validation:
Dimensional Checks: CMM or functional gauges
Visual Inspection: Surface quality, color consistency
Functional Testing: Assembly tests, performance verification
Environmental Testing: Chemical resistance, aging studies
Quality Standards:
ISO 9001: Quality management systems
ISO 13485: Medical device quality systems
FDA cGMP: Current good manufacturing practices
Customer-Specific: Often more stringent than industry standards
13. Industry Applications and Case Studies
Packaging Industry:
Food Containers: Clamshells, takeaway containers, lids
Display Packaging: Blister packs, point-of-purchase displays
Protective Packaging: Foam alternatives, cushioning elements
Cosmetic Packaging: Compacts, cases, applicators
Medical and Healthcare:
Laboratory Ware: Petri dishes, test tubes, pipettes
Diagnostic Devices: Housing for test equipment
Disposable Medical: Specimen containers, trays
Pharmaceutical: Packaging for tablets and capsules
Consumer Products:
Appliances: Refrigerator liners, small appliance housings
Electronics: TV/audio equipment housings, CD/DVD cases
Toys and Games: Building blocks, game pieces, protective cases

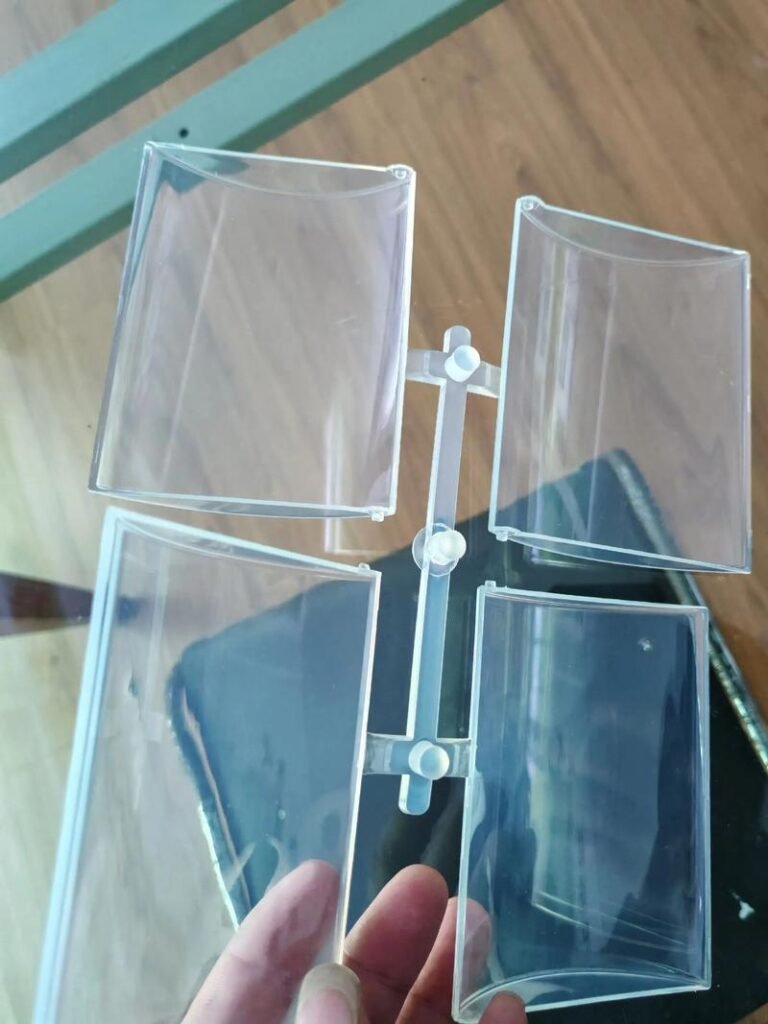

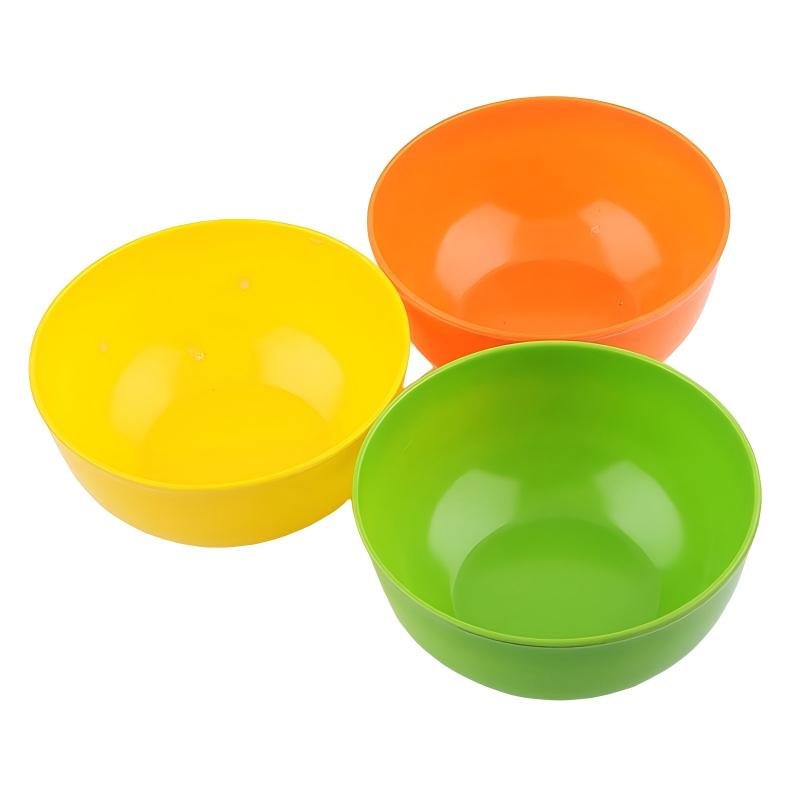

Housewares: Kitchen utensils, storage containers, organizers
Industrial Applications:
Electrical: Switch plates, outlet covers, connector housings
Automotive: Interior trim, glove boxes, instrument panel components
Construction: Light diffusers, decorative panels, temporary structures
Signage: Point-of-sale displays, informational signs
Specialty Applications:
Optical: Light guides, lenses (limited applications)
Architectural: Model making, prototypes
Art and Display: Exhibition components, museum displays
14. Sustainability and Environmental Considerations
Recycling Challenges and Opportunities:
Mechanical Recycling: Well-established for industrial scrap
Post-Consumer Recycling: More challenging due to contamination
Sorting Technologies: Optical sorting effective for clean streams
Property Retention: Good property retention with proper processing
Recycling Processes:
Collection and Sorting: By resin type and color
Cleaning and Washing: Remove contaminants
Size Reduction: Grinding to uniform flakes
Extrusion and Pelletizing: For reuse in moulding
Quality Control: Testing for property consistency
Energy Recovery:
Calorific Value: High energy content (42 MJ/kg)
Waste-to-Energy: Efficient energy recovery option
Cement Kilns: Alternative fuel source
Regulatory Compliance: Meeting emissions standards
Alternative Materials:
Biodegradable Alternatives: PLA, PHA for some applications
Recycled Content: Increasing use of post-consumer recycled PS
Material Reduction: Thin-wall designs to reduce material usage
Design for Recycling: Mono-material designs, easy disassembly
Industry Initiatives:
Extended Producer Responsibility: Manufacturer take-back programs
Recycling Infrastructure: Development of collection and processing systems
Consumer Education: Proper disposal and recycling information
Certification Programs: Recycled content certification
15. Future Trends and Innovations
Material Innovations:
Enhanced HIPS Grades: Improved impact-strength/stiffness balance
Clear HIPS Alternatives: Better clarity without brittleness
Bio-based PS: Developing from renewable resources
High-Heat PS: Modified grades for elevated temperature applications
Processing Advancements:
Industry 4.0 Integration: Smart sensors and IoT connectivity
Energy-Efficient Machines: All-electric presses for PS processing
Advanced Process Control: Machine learning for parameter optimization
Micro-Moulding: For miniature medical and electronic components
Sustainability Developments:
Chemical Recycling: Depolymerization back to styrene monomer
Improved Sorting: AI and robotics for better recycling efficiency
Circular Economy Models: Closed-loop systems for specific applications
Carbon Footprint Reduction: Energy efficiency throughout lifecycle
Application Expansion:
Medical Advancements: Improved sterilization-resistant grades
Electronics Miniaturization: High-precision moulding for small components
Sustainable Packaging: Lightweighting and recycled content
Consumer Electronics: Aesthetic and functional enhancements
Regulatory Evolution:
Global Standards Harmonization: Consistent regulations across regions
Safety Enhancements: Improved fire safety and chemical compliance
Environmental Regulations: Stricter recycling and recovery requirements
Product Stewardship: Increased manufacturer responsibility
16. Conclusion: The Enduring Value of Polystyrene
Polystyrene injection moulding represents a perfect balance of material performance, processing efficiency, and economic viability. Its continued success across diverse industries demonstrates the enduring value of this versatile material. While facing environmental challenges and increasing competition from alternative materials, PS remains relevant through continuous improvement in materials, processes, and sustainability practices.
The future of polystyrene lies in its adaptability—evolving to meet changing market demands while maintaining its core advantages of clarity, rigidity, and processability. For manufacturers, success with PS requires:
Material Knowledge: Understanding different PS grades and their capabilities
Process Expertise: Optimizing parameters for each application
Design Integration: Leveraging PS properties in product design
Sustainability Commitment: Implementing responsible manufacturing practices
Continuous Improvement: Staying current with technology advancements
As the manufacturing landscape evolves, polystyrene injection moulding will continue to play a vital role, particularly in applications where its unique combination of properties provides unmatched value. The challenge for the industry is to enhance PS’s environmental profile while maintaining its technical and economic advantages.
