Polyphenylene Sulfide (PPS) Injection Moulding: The Ultimate High-Temperature Engineering Polymer
1. Introduction: The High-Performance Workhorse
Polyphenylene Sulfide (PPS) stands as one of the most formidable engineering thermoplastics, renowned for its exceptional combination of thermal stability, chemical resistance, and dimensional integrity. First commercialized in the 1970s, this semi-crystalline polymer has established itself as the material of choice for applications where extreme temperatures, aggressive chemicals, and precise dimensional control are non-negotiable requirements. With a continuous service temperature rating of 220-240°C (428-464°F) and inherent flame retardancy, PPS injection moulding represents a pinnacle of high-temperature polymer processing technology, enabling components that routinely outperform metals in demanding environments.
This comprehensive guide explores the sophisticated world of PPS injection moulding, examining the material’s unique chemical structure, specialized processing requirements, and the rigorous quality standards necessary for success in automotive, electrical, industrial, and aerospace applications. We will uncover why PPS, despite its processing challenges, has become indispensable in applications ranging from fuel system components to semiconductor manufacturing equipment.
2. Material Science: Understanding PPS Chemistry
Chemical Architecture:
PPS is characterized by alternating para-substituted benzene rings and sulfur atoms, creating a polymer backbone of exceptional stability:
Key Structural Features:
Aromatic Rings: Provide rigidity and thermal stability
Sulfur Linkages: Contribute to chemical resistance and flame retardancy
Linear Structure: Enables high crystallinity (up to 65%)
High Purity: Essential for consistent processing and properties
Material Grades and Compositions:
| Grade Type | Reinforcement | Key Characteristics | Applications |
|---|---|---|---|
| Unfilled PPS | None | Natural color, low viscosity | Thin-walled parts, coatings |
| 40% Glass-Filled | Glass fiber | High strength, dimensional stability | Structural components, housings |
| Glass/Mineral Filled | Mixed fillers | Reduced warpage, lower cost | Automotive, electrical |
| Carbon-Filled | Carbon fiber | Conductivity, highest strength | Aerospace, EMI shielding |
| Lubricated Grades | PTFE/Graphite | Low friction, wear resistance | Bearings, seals |
| High Flow Grades | Modified | Improved processability | Complex geometries |
Exceptional Property Matrix:
| Property | Value Range | Industry Advantage |
|---|---|---|
| Continuous Service Temp | 220-240°C (428-464°F) | Highest among engineering plastics |
| Tensile Strength | 80-200 MPa | Comparable to metals at elevated temps |
| Flexural Modulus | 12-20 GPa | Exceptional stiffness |
| HDT @ 1.82 MPa | 260°C (500°F) | Unmatched thermal capability |
| Chemical Resistance | Outstanding | Resists virtually all chemicals |
| Flame Rating | UL94 V-0 (0.8mm) | Inherent flame retardancy |
| CTI (Comparative Tracking Index) | >600V | Superior electrical insulation |
| Water Absorption | 0.02-0.05% | Negligible moisture effect |

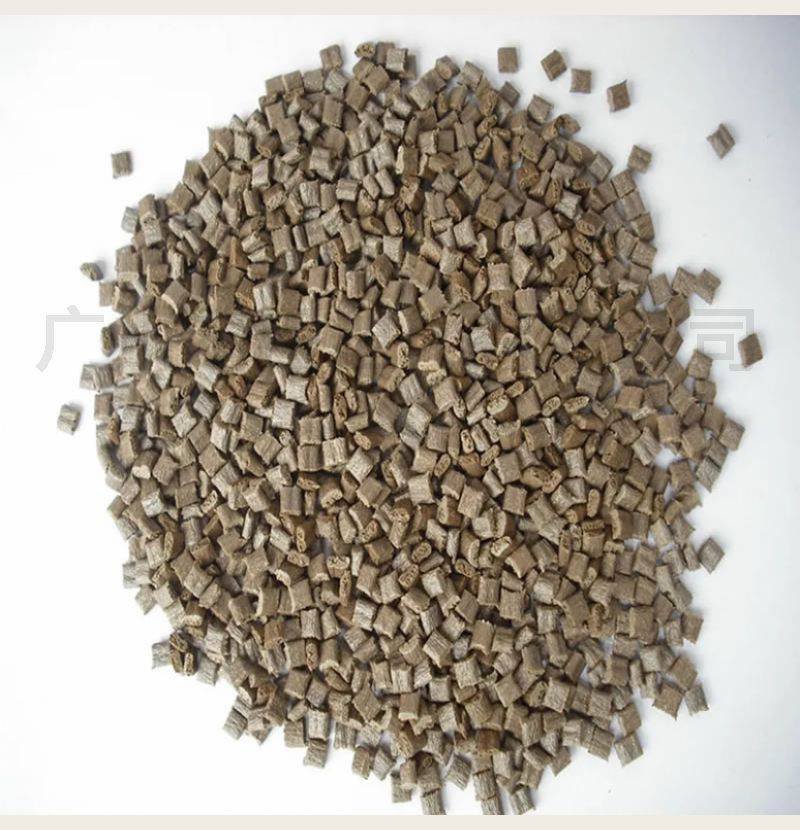

3. Material Preparation: Critical Pre-Processing Requirements
Essential Drying Protocol:
While PPS absorbs minimal moisture (0.02-0.05%), proper drying is crucial:
Drying Specifications:
Target Moisture: <0.02% (200 ppm) for optimal processing
Drying Temperature: 140-150°C (284-302°F) for 3-4 hours
Dew Point: -40°C (-40°F) or lower recommended
Over-drying Risk: Avoid temperatures above 160°C (320°F)
Hopper Design: Sealed drying systems preferred
Material Handling Considerations:
Storage Conditions: Below 30°C, <50% relative humidity
Container Management: Original packaging until use
Exposure Time: Minimize to prevent contamination
Regrind Control: Maximum 20-25% with virgin material
Safety Considerations:
Dust Control: PPS dust can be explosive in certain concentrations
Ventilation: Proper during material handling
Personal Protection: Masks recommended during material changes
Spill Management: Prompt cleanup procedures
Colorant Integration:
Limited Palette: High processing temperatures restrict color options
Special Masterbatches: PPS-compatible carriers required
Natural Color: Often preferred for technical applications
Pre-colored Compounds: Recommended for consistency
4. Injection Moulding Machine Requirements
High-Temperature Machine Specifications:
Temperature Capability:
Maximum Required: 380°C (716°F) minimum capability
Temperature Control: ±2°C precision throughout system
Heating Zones: Minimum 4-5 zones with PID control
Insulation: Comprehensive to maintain temperature stability
Heater Bands: High-quality with even distribution
Screw Design Requirements:
Material: Corrosion-resistant, hardened steel
L/D Ratio: 18:1 to 22:1 (shorter than some polymers)
Compression Ratio: 2.0:1 to 2.5:1
Check Valve: Full-flow type to prevent material hang-up
Wear Protection: Essential for filled grades
Screw Tip: Mixing elements for reinforced materials
Barrel and Nozzle System:
Barrel Material: Bimetallic with corrosion-resistant lining
Capacity: 50-80% of machine rating optimal
Nozzle Type: Open with precise temperature control
Thermocouples: Multiple for accurate temperature profiling
Wear Monitoring: Regular inspection schedule
Clamping System:
Clamp Force: 5-8 tons per square inch (higher for filled grades)
Platen Parallelism: Critical for high-pressure molding
Tie Bar Strength: Adequate for maximum injection pressures
Ejection System: Robust for stiff materials
Control System:
Closed-Loop Control: For temperature and pressure
Data Acquisition: Complete process documentation
Recipe Management: Multiple parameter sets
Integration: With auxiliary equipment
Auxiliary Equipment:
High-Temperature Dryers: Capable of 150°C operation
Mold Temperature Controllers: For precise thermal management
Robotics: For consistent part handling
Environmental Control: For processing consistency
5. Processing Parameters and Optimization
Critical Temperature Parameters:
| Process Zone | Temperature Range | Special Considerations |
|---|---|---|
| Rear Barrel | 300-320°C (572-608°F) | Gentle preheating |
| Middle Zones | 320-340°C (608-644°F) | Main melting phase |
| Front Zone | 330-350°C (626-662°F) | Final homogenization |
| Nozzle | 330-350°C (626-662°F) | Match melt temperature |
| Melt Temperature | 320-360°C (608-680°F) | Critical for flow and properties |
| Mold Temperature | 130-160°C (266-320°F) | Essential for crystallization |
Temperature Management Principles:
Minimum Temperature: Below 300°C risks incomplete melting
Maximum Temperature: Above 380°C may cause degradation
Thermal Uniformity: ±5°C maximum variation recommended
Residence Time: Extended periods at high temp can cause crosslinking
Injection Phase Optimization:
Injection Speed:
Fast to very fast injection preferred
Prevents premature freezing
Maintains melt temperature
Injection Pressure: 1200-2000 bar (higher for filled grades)
Switchover: 95-98% cavity fill by volume
Back Pressure: 5-15 bar for melt homogenization
Holding/Packing Phase:
Pressure: 50-70% of injection pressure
Time: Extended (10-20 seconds typical)
Function: Critical for dimensional control
Multi-Stage: Beneficial for complex geometries
Cooling and Crystallization:
Cooling Time: 40-60 seconds per mm thickness
Mold Temperature: Controls crystallization (65% max achievable)
Ejection Temperature: Below 150°C to prevent distortion
Annealing: Optional for maximum properties
Special Processing Notes:
Crosslinking Risk: Avoid excessive residence time
Viscosity: High melt viscosity requires adequate pressure
Shrinkage: 0.2-0.8% (lower for filled grades)
Cycle Time: Typically longer than standard engineering plastics
6. Tooling Design for PPS Moulding
Premium Mold Materials:
Cavity/Core: Tool steels H13, S7, or stainless steels
Hardness: 48-52 HRC minimum
Corrosion Resistance: Essential for consistent performance
Surface Treatments: Nitriding, chrome plating, or PVD coatings
Thermal Conductivity: High conductivity materials preferred
Runner System Design:
Full Round Runners: 6-10mm diameter minimum
Runner Balancing: Critical for multi-cavity molds
Hot Runner Systems: Externally heated with precise control
Gate Types:
Edge Gates: Most common, easy to trim
Direct Sprue: For single-cavity molds
Submarine Gates: For automatic degating
Valve Gates: For sequential filling
Temperature Control System:
High-Temperature Capability: Up to 160°C operation
Conformal Cooling: Follows part contours closely
Multiple Circuits: Separate control for different zones
Temperature Uniformity: ±3°C across mold surface
Insulation: Between mold halves to maintain temperature
Venting System:
Vent Depth: 0.015-0.025mm
Vent Width: 6-10mm
Strategic Placement: All end-of-fill areas
Importance: Prevents burning and incomplete filling
Maintenance: Regular cleaning essential
Ejection System:
Ejector Pins: Larger diameter to reduce surface pressure
Material Selection: High-temperature resistant steels
Surface Finish: Highly polished to prevent sticking
Ejection Force: Higher due to high stiffness
Stripper Plates: For thin-walled parts
Surface Finish Requirements:
Polish Levels: SPI B-1 to C-3 typically
Texture Options: Limited due to high stiffness
Draft Angles: 1-2° minimum, more for textured surfaces
Maintenance: Regular polishing to maintain quality
7. Crystallinity Control in PPS Processing
Understanding PPS Crystallinity:
Maximum Crystallinity: Up to 65% achievable
Crystallization Temperature: 120-140°C (248-284°F)
Crystal Structure: Complex orthorhombic system
Property Relationship: Direct correlation with mechanical properties
Factors Affecting Crystallinity:
| Factor | Effect on Crystallinity | Process Control |
|---|---|---|
| Mold Temperature | Higher temp = higher crystallinity | Critical control parameter |
| Cooling Rate | Slower cooling = higher crystallinity | Controlled cooling profiles |
| Nucleating Agents | Increase crystallization rate | Material formulation |
| Molecular Weight | Lower MW = faster crystallization | Grade selection |
| Part Thickness | Thicker sections = higher crystallinity | Design consideration |
Processing for Optimal Crystallinity:
Mold Temperature: Maintain 130-160°C for adequate crystallization
Holding Pressure: Sufficient to pack during crystallization
Cooling Rate: Controlled to allow proper crystal growth
Post-Mould Annealing: Optional for maximum properties
Annealing Processes:
Purpose: Increase crystallinity, relieve stresses, improve properties
Temperature: 200-220°C (392-428°F) for 2-4 hours
Atmosphere: Air or inert gas
Benefits: Increased HDT, improved chemical resistance
Applications: For maximum performance requirements
Crystallinity Measurement:
DSC Analysis: Most common method
XRD: For crystal structure analysis
Density Methods: Indirect measurement
FTIR Spectroscopy: For chemical analysis
8. Part Design Guidelines for PPS Components
Wall Thickness Principles:
General Range: 1.0-4.0mm
Optimal Thickness: 1.5-2.5mm
Uniformity: Critical (maximum 25% variation)
Minimum Thickness: 0.5mm possible with optimized processing
Thick Sections: Core out to minimize sink marks
Radii and Corner Design:
Internal Radii: Minimum 0.5 times wall thickness
External Radii: Internal radius plus wall thickness
Stress Concentration: Avoid sharp corners completely
Transition Design: Gradual changes (3:1 maximum ratio)
Rib and Boss Design:
Rib Thickness: 40-50% of adjacent wall
Rib Height: Maximum 2.5 times wall thickness
Boss Design: Must be cored and connected with ribs
Draft Angles: 1-2° per side minimum
Fillet Radii: Generous at base connections
Draft Angle Requirements:
Standard Applications: 1-2° per side
High-Aspect Features: Additional draft may be required
Textured Surfaces: Add 1° per 0.025mm texture depth
Deep Draw Parts: Additional draft for ejection
Tolerance Considerations:
Standard Tolerances: ±0.1% or ±0.1mm, whichever is greater
Critical Dimensions: ±0.05% achievable with optimization
Thermal Expansion: Account for 4.9 x 10^-5 /°C (flow direction)
Anisotropic Shrinkage: Different in flow vs. cross-flow directions
Assembly Feature Design:
Snap-fits: Limited use due to high stiffness and brittleness
Threads: Molded-in possible with proper design
Press-fits: Careful interference calculations required
Ultrasonic Welding: Possible but requires optimization
Mechanical Fastening: Most common assembly method
9. Quality Control and Testing Protocols
Material Qualification Testing:
Thermal Analysis:
DSC Analysis: Melting point (285°C), crystallinity percentage
TGA: Thermal stability, decomposition temperature
DMA: Dynamic mechanical properties at temperature
HDT/Vicat: Heat deflection and softening points
Mechanical Testing:
Tensile Properties: ASTM D638 at room and elevated temperatures
Flexural Testing: ASTM D790 for stiffness verification
Impact Resistance: ASTM D256 (Izod/Charpy)
Compressive Strength: ASTM D695 for structural validation
Electrical Properties:
Dielectric Strength: ASTM D149
CTI Testing: ASTM D3638 for tracking resistance
Volume Resistivity: ASTM D257
Arc Resistance: ASTM D495
Chemical and Environmental:
Chemical Resistance: Immersion testing per ASTM D543
Hydrolytic Stability: For automotive and industrial applications
Weathering Tests: QUV, xenon arc for outdoor applications
Aging Studies: Long-term property retention at temperature
Process Control Parameters:
Melt Temperature: Continuous monitoring with pyrometers
Pressure Profiles: Injection and holding phase documentation
Cushion Consistency: ±0.3mm variation maximum
Cycle Time: Statistical process control implementation
Part Validation Testing:
Dimensional Verification: CMM with thermal compensation
Surface Quality: Inspection per application requirements
Non-destructive Testing: For critical applications
Functional Testing: Under simulated service conditions
Certification and Documentation:
Material Traceability: Full lot tracking
Process Documentation: Complete parameter records
Quality Certifications: IATF 16949, AS9100, ISO 13485
Industry-Specific Requirements: Automotive, aerospace, medical

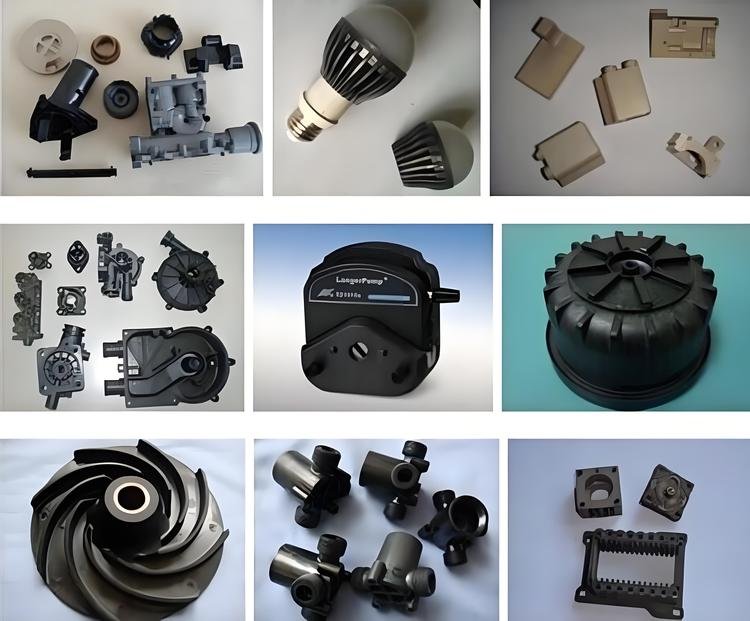

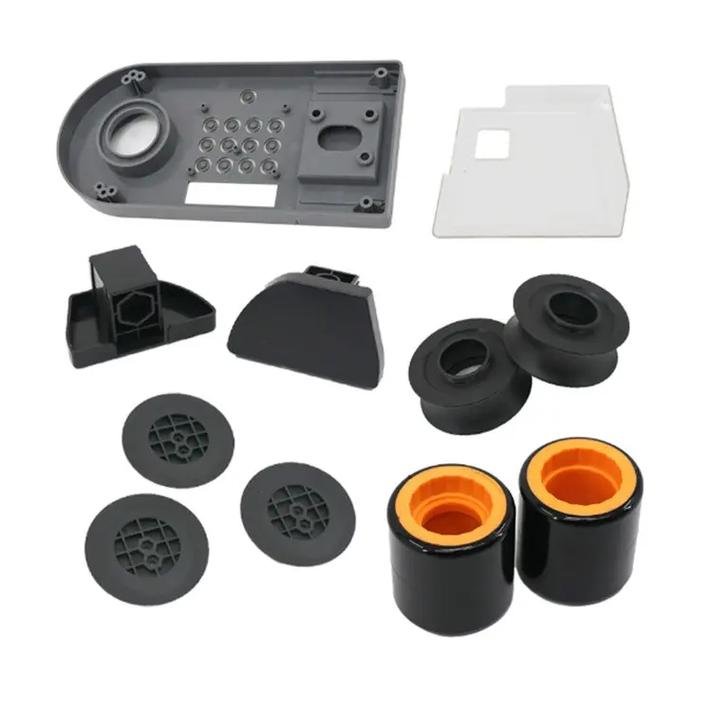

10. Industry Applications and Case Studies
Automotive Applications:
Underhood Components: Throttle bodies, sensors, connectors
Fuel System Parts: Pump components, fuel rails
Electrical Systems: Connectors, sockets, housings
Lighting: Reflectors, LED housings
Benefits: Weight reduction, chemical resistance, high temperature capability
Electrical and Electronics:
Connectors: SMT, through-hole, board-to-board
Switchgear: Housings, insulating components
Motor Parts: Brush holders, end caps, commutators
Semiconductor: Wafer carriers, handling components
Benefits: Flame retardancy, dimensional stability, high CTI
Industrial Equipment:
Pump Components: Impellers, housings, wear rings
Valve Parts: Seats, balls, stems, housings
Compressor Components: Vanes, seals, shrouds
Chemical Processing: Equipment for aggressive environments
Benefits: Chemical resistance, wear resistance, high temperature
Aerospace and Defense:
Interior Components: Brackets, clips, fasteners
Engine Components: Seals, bushings, sensor housings
Electrical Systems: Connectors, insulating components
Benefits: Light weight, flame/smoke/toxicity compliance, high temperature
Consumer Products:
Appliance Components: Heating elements, housings
Cookware: Handles, knobs, components
Lighting: Reflectors, sockets
Benefits: High temperature resistance, durability
Emerging Applications:
Electric Vehicles: High-voltage connectors, battery components
Renewable Energy: Solar, wind power components
Medical Equipment: Sterilizable components
Additive Manufacturing: For complex geometries
11. Troubleshooting Common PPS Defects
| Defect | Root Causes | Corrective Actions | Prevention Strategies |
|---|---|---|---|
| Brittle Parts | Excessive crystallinity, degradation | Lower mold temperature, reduce residence time | Optimize processing parameters |
| Surface Defects | Moisture, contamination | Improve drying, clean equipment | Strict material handling procedures |
| Warpage/Distortion | Non-uniform cooling, high internal stress | Improve cooling uniformity, annealing | Balanced mold design, controlled cooling |
| Short Shots | Low temperature, inadequate pressure | Increase temps 10-20°C, increase pressure | Proper temperature settings, gate optimization |
| Sink Marks | Insufficient packing, thick sections | Increase holding pressure/time, modify design | Uniform wall design, adequate packing |
| Flash | Excessive pressure, worn tooling | Reduce pressure, repair tool | Regular maintenance, process optimization |
| Poor Dimensional Control | Inconsistent processing | Standardize process parameters | Process control, statistical monitoring |
| Discoloration | Thermal degradation, excessive residence | Lower temperatures, optimize cycle time | Temperature control, minimized residence |
Material-Specific Challenges:
High Viscosity: Requires adequate injection pressure
Crystallization Control: Critical for consistent properties
Anisotropic Shrinkage: Different in flow vs. transverse directions
Wear on Equipment: Filled grades accelerate screw and barrel wear
Preventive Quality Measures:
Regular Calibration: Temperature and pressure sensors
Material Testing: Incoming material qualification
Process Validation: DOE studies for optimization
Continuous Monitoring: Real-time parameter tracking
Preventive Maintenance: Regular equipment inspection
12. Sustainability and Environmental Considerations
Material Sustainability Aspects:
Recycling Options:
Mechanical Recycling: Possible with property degradation
Maximum Regrind: 20-25% in non-critical applications
Sorting Requirements: Must be separated from other polymers
Applications: Lower-grade components possible
Energy Recovery:
Calorific Value: 30-32 MJ/kg
Waste-to-Energy: Efficient option for contaminated material
Environmental Compliance: Meets waste disposal regulations
Manufacturing Sustainability:
Energy Efficiency: High processing temperatures require optimization
Material Utilization: Design for minimal waste
Water Usage: Closed-loop cooling systems
Emission Control: Proper ventilation and filtration
Industry Initiatives:
Material Stewardship: Responsible sourcing and use
Life Cycle Assessment: Comprehensive environmental analysis
Industry Collaboration: For improved sustainability
Research & Development: For more sustainable formulations
Regulatory Compliance:
RoHS/REACH: Compliance with chemical restrictions
Waste Management: Proper disposal procedures
Worker Safety: OSHA compliance for high-temperature processing
Environmental Regulations: Meeting local and international standards
13. Future Trends and Innovations
Material Science Advancements:
Enhanced Flow Grades: For thinner walls and complex geometries
Improved Toughness: New formulations for better impact resistance
Sustainable Options: Research into more environmentally friendly versions
Nanocomposites: Enhanced properties at lower filler loadings
Processing Technology Evolution:
Industry 4.0 Integration: AI-driven process optimization
Additive Manufacturing: 3D printing with PPS filaments
Micro-moulding: For miniature electronic components
Hybrid Processes: Combining different manufacturing methods
Application Expansion:
Electric Vehicles: High-temperature electrical systems
5G Technology: Components for high-frequency applications
Advanced Medical: Sterilizable equipment components
Renewable Energy: Components for harsh environments
Sustainability Innovations:
Improved Recycling: Better separation and recovery methods
Circular Economy: Closed-loop material systems
Energy Efficiency: Reduced processing energy requirements
Bio-based Alternatives: Long-term research directions
Market and Regulatory Trends:
Cost Optimization: Through improved manufacturing efficiency
Global Standards: Harmonization of material specifications
Regulatory Evolution: Changing requirements for automotive and electrical
Supply Chain Resilience: For consistent quality and availability
14. Conclusion: Mastering High-Temperature Polymer Excellence
PPS injection moulding represents a sophisticated manufacturing discipline requiring:
Material Expertise: Deep understanding of PPS chemistry and behavior
Process Precision: Exact control of temperature, pressure, and timing
Equipment Capability: Specialized machinery and tooling
Quality Commitment: Uncompromising standards for demanding applications
Continuous Improvement: Ongoing optimization and innovation
The future of PPS processing lies in expanding its capabilities while improving process efficiency and sustainability. As new applications emerge in electrification, renewable energy, and advanced electronics, PPS will continue to provide solutions where other materials cannot compete.
For manufacturers, PPS offers entry into high-value markets with stringent requirements. The investment in specialized equipment, technical expertise, and quality systems is substantial, but the returns – in terms of market position, technical capability, and customer partnerships – are significant.
As technology advances and global challenges require more sophisticated materials solutions, those who have mastered PPS processing will be positioned to lead in advanced manufacturing. The journey requires dedication and expertise, but the destination – producing components that reliably perform in the world’s most demanding environments – justifies the effort.
