Samgo Mold Shop: Engineering Precision at the Heart of Production
The Samgo Mold Shop is the strategic core of our injection molding operation. Far more than a support department, it is where innovation, precision engineering, and meticulous craftsmanship converge to create and maintain the critical tools that define product quality. Our facility is divided into two synergistic disciplines: Advanced Mold Manufacturing and Precision Mold Assembly & Benchwork. This integrated approach ensures we have complete control over mold lifecycle—from initial fabrication and modification to maintenance, repair, and final preparation for production (Try-out). This document provides an in-depth look at the capabilities, technology, and expertise housed within our modern mold shop.
1. Philosophy & Overview: Control, Quality, and Responsiveness
Our mold shop philosophy is built on three pillars:
Vertical Integration & Control: Maintaining core manufacturing and maintenance capabilities in-house reduces lead times for new projects and mold modifications, ensuring unmatched responsiveness.
Precision as Standard: We operate to exacting tolerances, understanding that micron-level accuracy in the mold directly translates to part quality, consistency, and production efficiency.
Proactive Partnership: The mold shop works hand-in-glove with product design, project management, and production teams, providing manufacturability feedback (DFM) and rapid solutions to technical challenges.
The shop is logically organized into a Machining Area for material removal and shaping, and an Assembly & Benchwork Area for fitting, finishing, and validation.
2. Zone 1: Advanced Mold Manufacturing & Machining Center

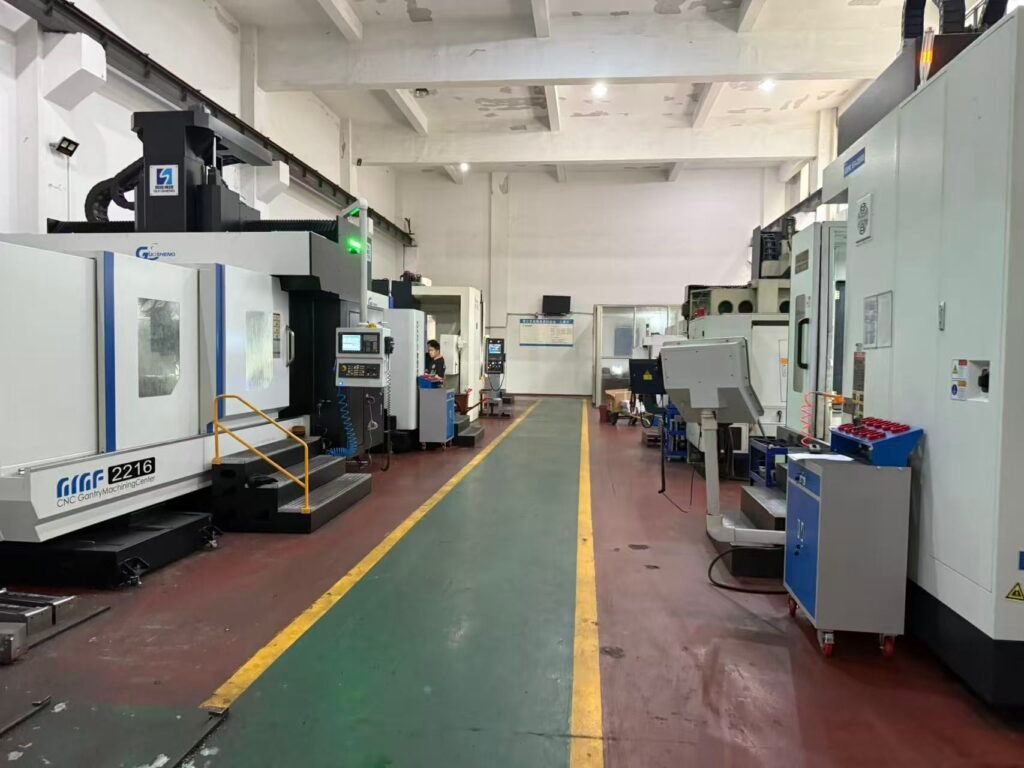

This zone is equipped with state-of-the-art CNC (Computer Numerical Control) machinery, transforming raw blocks of premium mold steel into complex, high-precision cavity and core components.
Subsection 2.1: High-Speed CNC Machining Centers
Capability: Our 3-axis and 5-axis high-speed CNC milling machines are the workhorses of the shop. The 5-axis capability is crucial for machining complex geometries, deep ribs, and undercuts in a single setup, reducing errors and saving significant time.
Process: Operators program tool paths using advanced CAM (Computer-Aided Manufacturing) software. The machines then precisely cut hardened or pre-hardened steel to create mold plates, cavities, cores, sliders, and lifters.
Key Benefit: Delivers exceptional surface finishes and dimensional accuracy, minimizing the need for extensive manual polishing downstream.
Subsection 2.2: Electrical Discharge Machining (EDM)

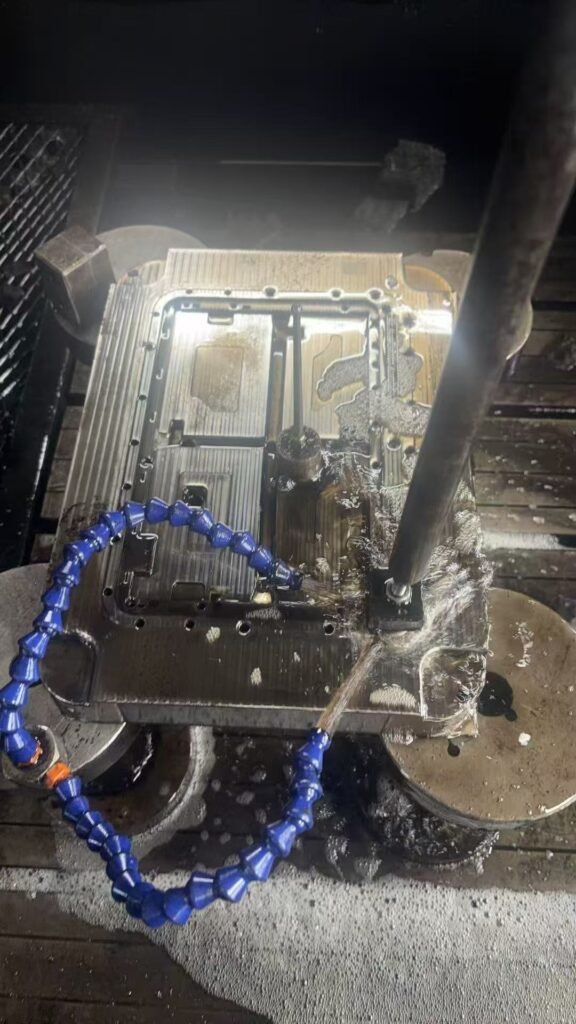

Capability: For features impossible to mill with a rotating tool—such as sharp internal corners, deep narrow ribs, intricate textures, or profiles in hardened steel—we utilize both Sinker EDM and Wire EDM.
Process: Sinker EDM uses a copper or graphite electrode to erode the inverse shape into the steel. Wire EDM uses a thin, electrically charged wire to cut through metal like a precision bandsaw, ideal for extrusion dies and punch tools.
Key Benefit: Allows for the creation of incredibly detailed and durable mold features without introducing mechanical stresses.
Subsection 2.3: Supporting Machining & Inspection
CNC Lathe: Used for machining round components like ejector pins, sleeve ejectors, and bushings.
Deep Hole Drilling: Essential for creating efficient conformal cooling channels that follow the contour of the mold cavity, dramatically reducing cycle times and improving part quality.
Quality Assurance: A Coordinate Measuring Machine (CMM) with a touch probe is used to digitally inspect machined components against the original 3D CAD model, verifying critical dimensions and geometries before assembly.
3. Zone 2: Precision Mold Assembly, Benchwork & Try-Out
This zone is where the art of mold making takes center stage. Highly skilled mold makers (Toolmakers) assemble the machined components into a perfectly functioning injection mold.
Subsection 3.1: Mold Fitting & Assembly Stations

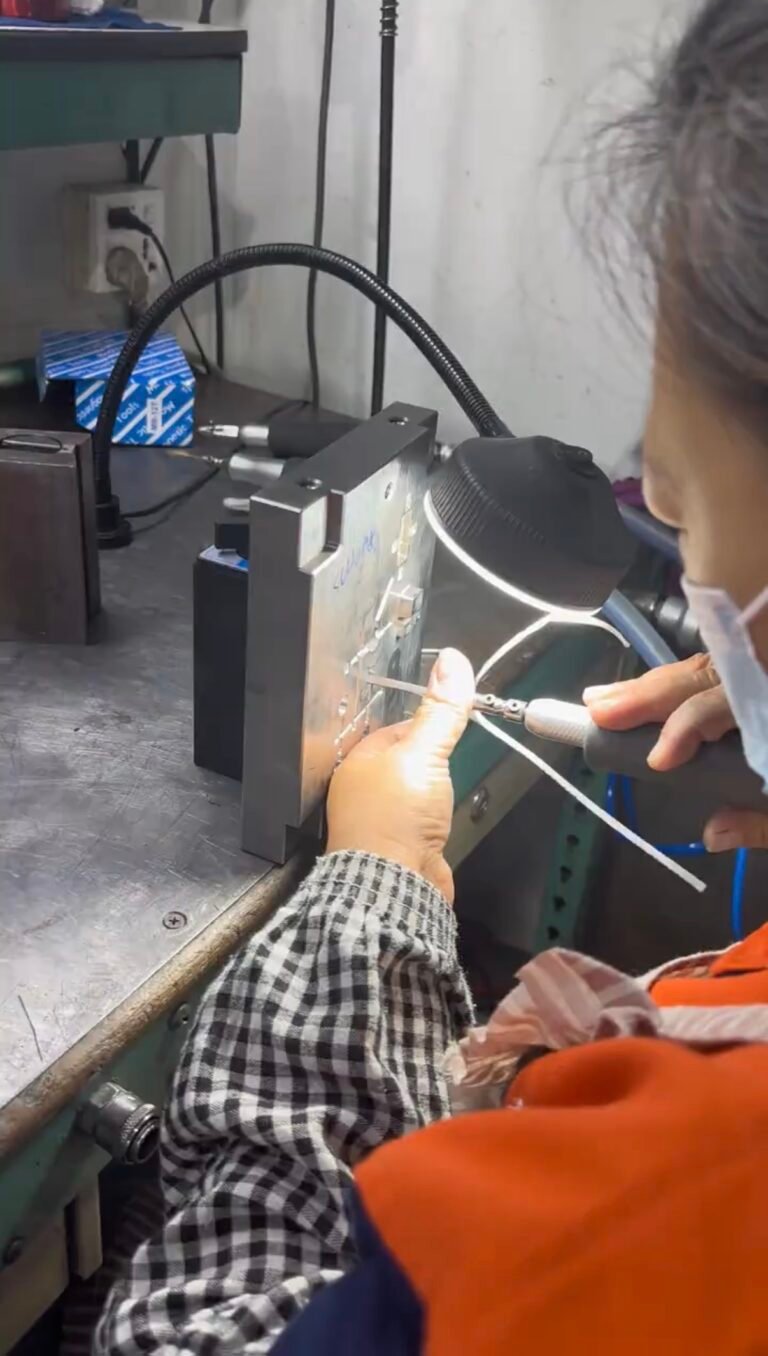

Capability: Each fitter works at a dedicated, well-lit, and impeccably clean bench equipped with all necessary precision tools. The area is climate-controlled to minimize thermal expansion during fine fitting.
Process: Components are carefully deburred, fitted, and adjusted. The fitter ensures perfect alignment of cavities and cores, smooth movement of sliders and lifters, and proper function of the ejection system. Hydraulic and pneumatic connections for mold actions are integrated and tested.
Key Benefit: This hands-on expertise is irreplaceable. The fitter’s “feel” and knowledge ensure the mold operates smoothly, reliably, and without damage during high-speed production.
Subsection 3.2: Surface Finishing & Polishing
Capability: The surface finish of the mold cavity is directly replicated onto the plastic part. We offer a full range of finishes, from high-gloss mirror polish (SPI A1) to various textured finishes (EDM, stone, laser etch).
Process: Using specialized tools, stones, diamond compounds, and polishing tapes, technicians meticulously work the steel to the specified finish. This process requires immense skill to avoid rounding edges or creating directional marks.
Key Benefit: Defines the aesthetic and functional quality of the final product. A superior polish also improves part release, reducing ejection forces and cycle time.
Subsection 3.3: On-Site Mold Try-Out & Validation
Capability: Our mold shop includes a dedicated Try-Out Press—a full-sized injection molding machine integrated into the shop floor.
Process: After assembly, the mold is mounted directly into the try-out press. The mold makers, in collaboration with process technicians, run initial shots. They validate fill, function, cooling, and ejection, and make immediate fine-tuning adjustments (e.g., venting, polish tweaks, ejection timing) right on the spot.
Key Benefit: This is the ultimate quality gate. It eliminates the costly and time-consuming cycle of sending molds to an external press for testing, allowing for rapid iteration and ensuring the mold arrives at the production floor fully optimized and ready for manufacturing.
4. Integration & Continuous Improvement
The mold shop is fully integrated into Samgo’s digital ecosystem:
Digital Workflow: CAD/CAM data flows seamlessly from design to machining. Job travelers and maintenance histories are managed electronically.
Preventive Maintenance (PM) Program: A scheduled PM program for all production molds is executed here, documenting wear and performing proactive refurbishment to prevent unplanned downtime.
Knowledge Hub: Senior mold makers mentor junior technicians, ensuring the transfer of critical tacit knowledge and upholding Samgo’s standards for generations of tools to come.
5. Conclusion: The Foundation of Manufacturing Excellence
The Samgo Mold Shop is more than a facility; it is a testament to our commitment to excellence, control, and innovation. By combining advanced, automated machining technologies with the irreplaceable skill of master toolmakers, we possess a powerful competitive advantage. This complete in-house capability allows us to respond with agility to customer needs, maintain the highest standards of quality in every tool we build or maintain, and ultimately, guarantee the performance and reliability of the injection molding process that delivers superior products to our customers. It is here, in the mold shop, that the promise of a design is transformed into the precision tool that makes it a reality.
